FP1 Soffit Panel

Panel offers clean lines, ideal for soffit, fascia, liner or ceiling applications.
Variable width soffit panel

The MPI StrongSeam FP1-Panel is a low-maintenance, panel designed for open spans and offering versatility in soffit, fascia, liner, and ceiling applications. This concealed-fastener prefinished metal siding panel boasts clean lines that enhance a building’s eaves and walls, providing a sleek and modern aesthetic. The FP1-Panel allows for adjustable configurations, ranging from flush to a 3” reveal, offering design flexibility. It is available in smooth, grooved, or perforated options to suit various architectural needs and preferences.

Available in both 26 and 24-gauge, the FP1-Panel offers different standard coverage widths depending on the gauge. The 26-gauge option provides a 16” coverage with a maximum recommended length of 2 feet, while the 24-gauge option comes in 12”, 16”, and 18” coverages. Both gauges feature a 1” interlocking rib for secure installation. Color options are extensive, with 24 SMP stock colors plus galvalume available for 26 gauge, and 32 PVDF stock colors plus galvalume and SMP glossy white for 24-gauge. Additionally, Dark Bronze, Matte Black, and a Glossy White colors are available in 22-gauge. Other 22-gauge colors are available by special order.

The inherent simplicity of the StrongSeam FP1 is a key design advantage, allowing for uniform dimensions and a clean appearance that facilitates modular planning and the elimination of complex pieces. Its adaptability extends to installation orientation, as it can be positioned vertically, horizontally, perpendicularly, or skewed to the building line, providing designers with multidimensional freedom. Designed for attachment to girts or a solid substructure, the FP1-Panel’s concealed fasteners contribute to its seamless look, making it an ideal choice for both soffit and interior liner applications.

FP1 Panel Soffit Installation

Documentation

FP1 Soffit Panel Profile Sheet

Download

SMP Color Chart

Download

PVDF Color Chart

Download

Specifications

FP Soffit Panel image

Application: soffit, fascia, liner or ceiling applications
Fastener System: Concealed
Min. Roof Pitch: n/a
Gauge: 26 ga., 24 ga., 22 ga.
Panel Width Coverage: 16” for 26 ga., 12”, 16”, 18” for 24 ga.
Rib Height: 1”

FP Soffit Panel image

Steel Strength: 50 KSi
Paint System: SMP, PVDF
Textured Colors Available: Yes
Warranty: WeatherXL Limited 40-Year, MPI Fluropon

Testing

MPI StrongSeam FP1 Panels are tested to ensure that they meet your building requirements in fire and impact ratings. The StrongSeam FP1 Panel meets or exceeds the Class IV impact and Class A fire ratings.

UL (TBD)

Warranty

MPI warrants their panels to be durable, long-lasting products with finish warranties.

Project Gallery

Looking for inspiration? See our gallery below.

[Similar Soffit Panels]

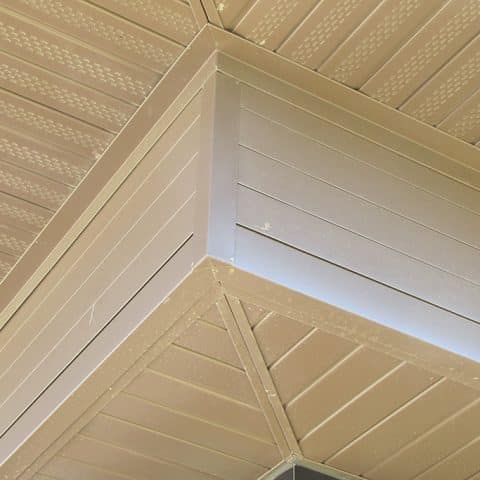

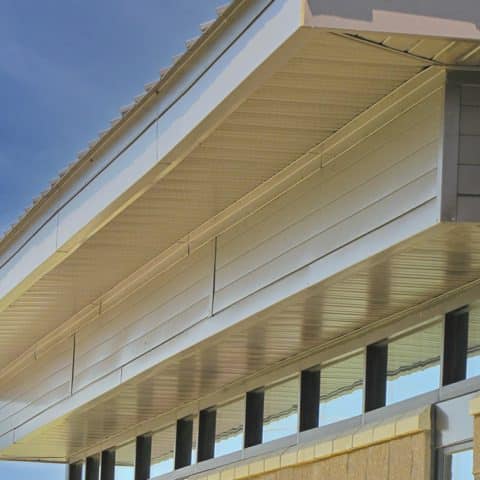

FP1 or FP15

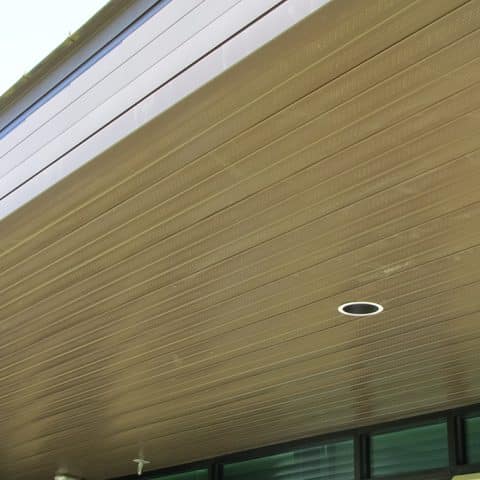

FP1 or FP15

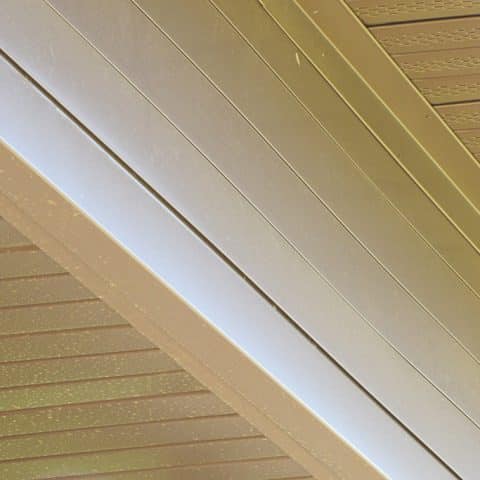

FP1 or FP15

FP1 or FP15

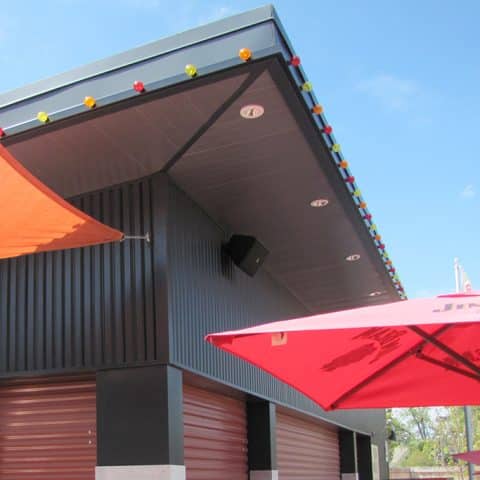

L-Panel or FP1

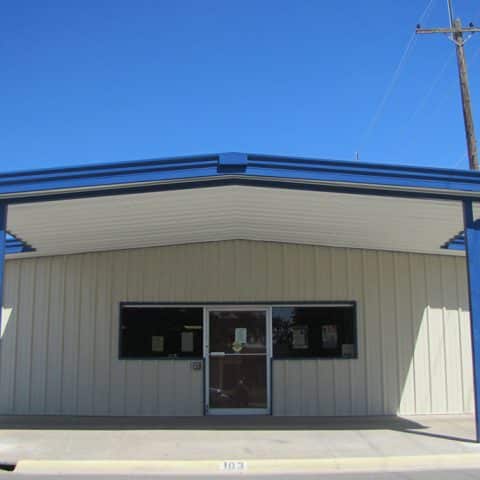

M-Panel

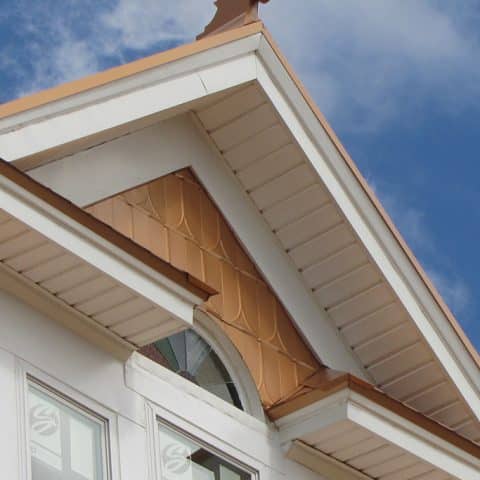

FP Soffit with spacing

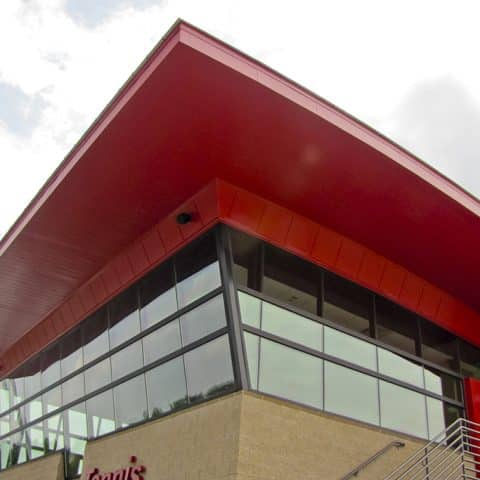

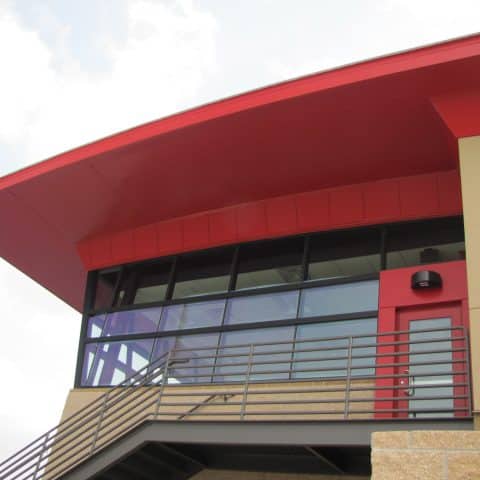

L-Panel

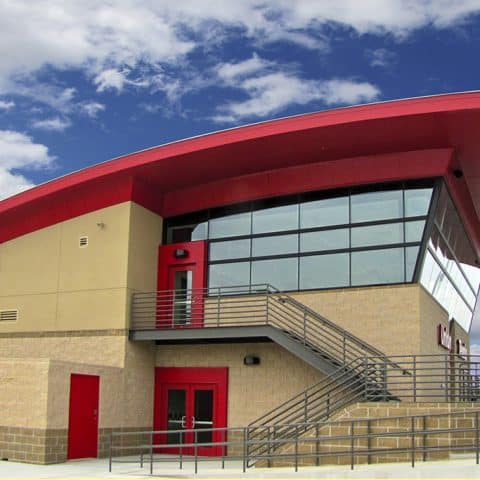

L-Panel

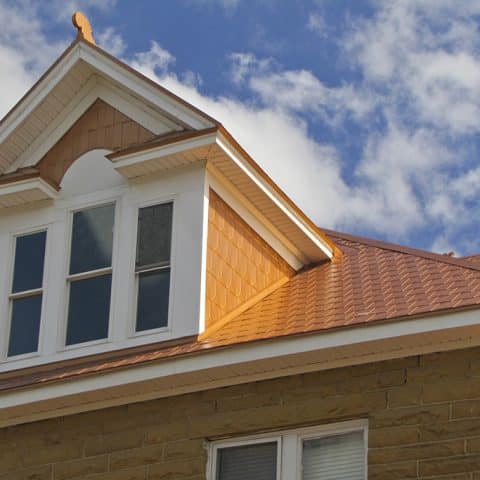

L-Panel or FP1

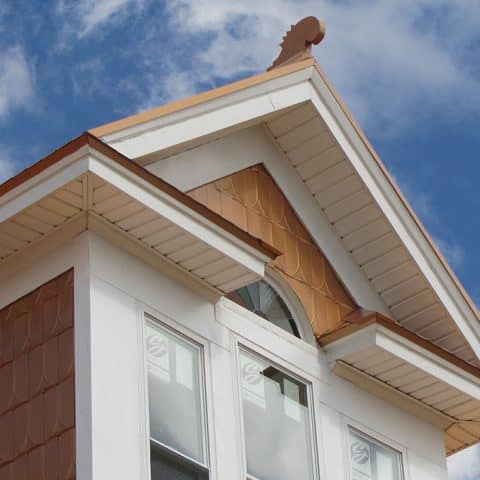

L-Panel or FP1

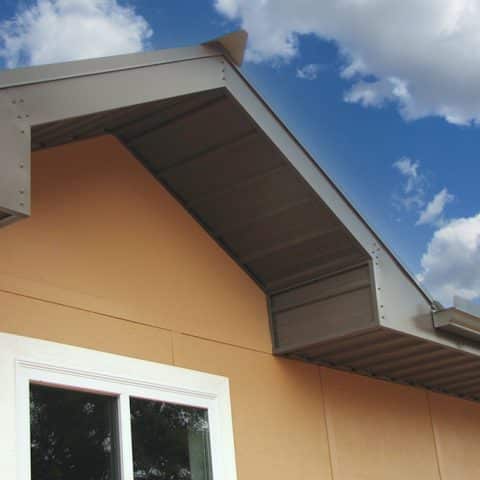

Flat-Loc

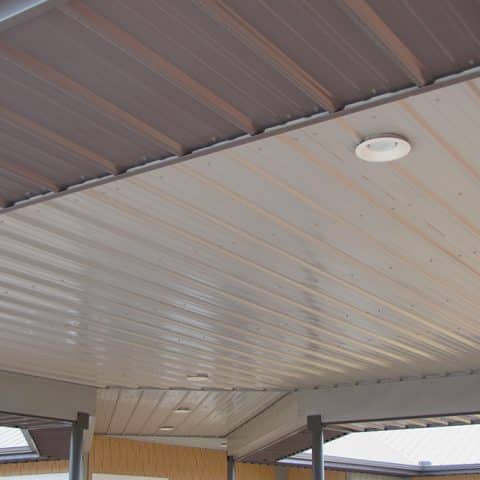

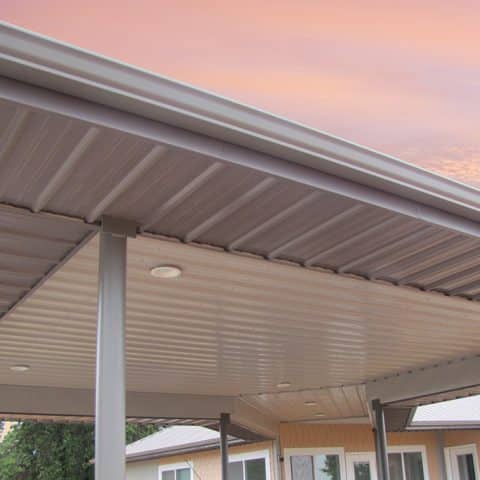

AG-Panel

AG-Panel

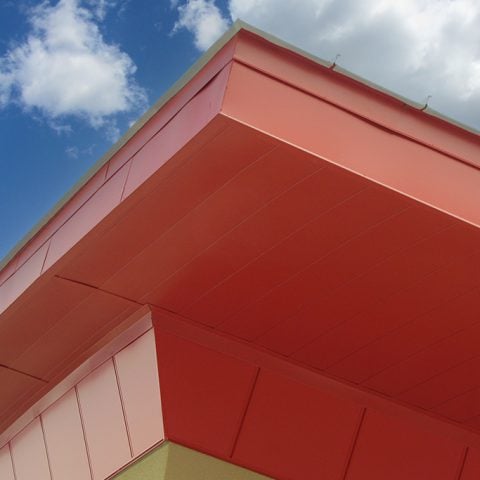

L-Panel
