FF1 Panel

Economical 1” snap-lock panel for solid decking

The MPI StrongSeam FF1 panel is an economical, snap-together roofing solution designed for installation over a solid deck. It features a 1-inch standing seam and a hidden fastener system, utilizing pancake fasteners within the panel’s flange to create a clean, uninterrupted surface. Available in 26-gauge SMP and 24-gauge PVDF, with widths ranging from 12 to 18 inches, the panel offers material versatility. A minimum recommended slope of 3:12 ensures proper drainage, and pan striations are required for all 26-gauge panels, adding structural rigidity.

Key attributes of the FF1 panel include its true hidden fastener system, which enhances ease of installation, aesthetics, performance, and its architectural appearance, which is suitable for various building styles. Engineered to withstand high wind loads, it’s a reliable choice for areas with extreme weather. The panel’s long-standing industry presence reflects its proven quality and reliability, making it a trusted standard.

Crafted for durability and long-term performance, the FF1 panel is suitable for both residential and commercial applications. The variety of materials and finishes allows for customization to meet specific project needs. The snap-lock design ensures a lifetime of protection against the elements, making it a low-maintenance and reliable choice. This combination of aesthetic appeal and robust functionality makes the StrongSeam FF1 panel a smart investment for durable and visually pleasing roofing.

FF1 Panel Installation

Documentation

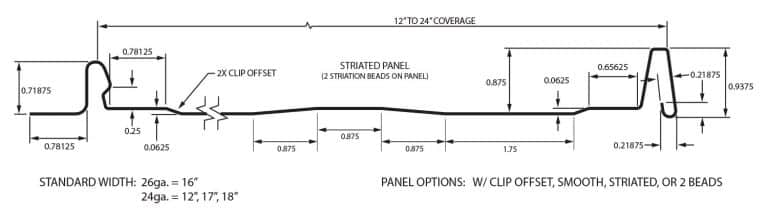

FF1 Panel Profile Sheet

Download

FF1 Panel Installation Guide

Download

FF1 Panel Engineering Sheet

Download

UL information

Download

PVDF Color Chart

Download

Other Concealed Fastener Panel Options

Download

Specifications

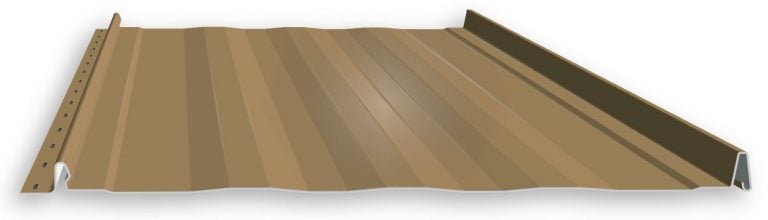

SSFF Full

Application: Roofing
Fastener System: Hidden flange, no clips required
Roof Pitch: 3:12
Gauge: 26 ga., 24 ga.
Panel Width Coverage: 16” for 26 ga.; 12”,16” & 18” for 24 ga.
Rib Height: 1”

Steel Strength: 80 KSi
Paint System: SMP, PVDF
Textured Colors Available: Yes
Warranty: WeatherXL™ Limited 40 year, MPI Fluropon Warranty

Testing

FF1 Panels are tested to ensure that they meet your building requirements in fire and impact ratings. The MPI FF1 Panel meets or exceeds the Class IV impact and Class A fire ratings.

UL90 #529, UL2218 Class IV/Impact, UL790 Class A/Fire

Warranty

MPI warrants their panels to be durable, long-lasting products with finish warranties.
